10 Best Contour Gauges That Shape Your Projects Like a Pro
You’re standing in a cramped workshop, trying to copy a winding crown molding that twists around a corner, and the pins on your old gauge keep bending, leaving you with jagged, inaccurate cuts. The frustration of constantly read‑adjusting and wasting material is all too familiar for anyone who’s ever tackled custom trim.
What separates a reliable contour gauge from a flimsy one? Most buyers overlook the importance of a rigid ABS or aluminum body, choose pins that are too thick to stay true under pressure, and ignore the need for a secure metal lock that holds the pins in place after tracing. This guide reviews the ten top contour gauges, selected based on build material, pin thickness, locking mechanism, and modular length options, so you’ll know exactly which tool will give you precise, repeatable shapes for any project.
Key Takeaways
If you need a gauge that won’t rust while you’re shaping long, winding contours, look for a high‑strength ABS body paired with stainless‑steel or aluminum pins. For anyone who works on projects that demand fine detail, ultra‑thin 0.05‑inch pins and a higher pin count give you the precision you crave. You get consistent pin alignment without hunting for loose parts, thanks to metal or aluminum lock mechanisms and adjustable tension.
What makes this contour gauge stand out is its modular, snap‑together sections—5, 10, 12, or 20 inches—so you can handle long profiles without stitching. Perfect for DIY enthusiasts who value speed, the snap‑together design lets you assemble the length you need in seconds. The gauge also includes practical accessories like an Allen wrench and extra pins, keeping everything you need right at hand.
You get a tool that stays accurate even in tight spaces, because the clear markings are easy to read at a glance. The combination of a sturdy ABS shell and rust‑proof pins means you won’t have to replace it after a few projects. This gauge is the go‑to choice for anyone who wants reliable performance without the hassle.
| Contour Gauge Profile Tool 20‑Inch Unlimited Connection |  | Unlimited Connectivity | Material: ABS plastic | Length Options: 10 + 10 in (connectable) | Locking Mechanism: Lock pins in place | VIEW LATEST PRICE | Read Our Analysis |
| Contour Gauge Tool – Unique Dad & Husband Gift (10+5″) |  | Gift-Ready Design | Material: ABS plastic + metal lock components | Length Options: 5 in & 10 in gauges | Locking Mechanism: Metal lock mechanism | VIEW LATEST PRICE | Read Our Analysis |
| Contour Gauge 12″ Lock Profile Tool – Gift for Men |  | Premium Precision | Material: ABS plastic | Length Options: 12 in gauge | Locking Mechanism: Locking mechanism | VIEW LATEST PRICE | Read Our Analysis |
| WORKPRO Contour Gauge (20″) Profile Duplicator with Lock |  | Compact Pro | Material: ABS plastic | Length Options: 10 + 10 in (connectable) | Locking Mechanism: Locking mechanism | VIEW LATEST PRICE | Read Our Analysis |
| General Tools Contour Gauge 837 – 6″ Angle Finder |  | Angle Specialist | Material: Stainless steel pins, ABS housing | Length Options: 6 in gauge | Locking Mechanism: No lock (manual) | VIEW LATEST PRICE | Read Our Analysis |
| DODOWIN 20″ Contour Gauge Lockable Duplicator Tool |  | Extended Reach | Material: ABS plastic | Length Options: 10 + 10 in (connectable) | Locking Mechanism: Built‑in lock | VIEW LATEST PRICE | Read Our Analysis |
| Contour Gauge Tool 10 & 5 Inch Adjustable Woodworking Duplicator |  | Dual-Size Versatility | Material: ABS plastic | Length Options: 5 in & 10 in gauges | Locking Mechanism: Metal/aluminum lock | VIEW LATEST PRICE | Read Our Analysis |
| 2Pack Adjustable Contour Gauge Tool for Angles & Shapes |  | Portable Duo | Material: ABS plastic + metal lock core | Length Options: 5 in & ~12 in gauges | Locking Mechanism: Metal lock core | VIEW LATEST PRICE | Read Our Analysis |
| Saker Contour Gauge Tool for Woodworking DIY | DIY Essential | Material: ABS plastic | Length Options: 10 in gauge | Locking Mechanism: Lock mechanism | VIEW LATEST PRICE | Read Our Analysis | |
| VARSK Contour Gauge Tool with Lock (5+10″) Measuring Profile Tool |  | Heavy‑Duty Core | Material: ABS plastic + aluminum core, metal lock | Length Options: 5 in & 10 in gauges | Locking Mechanism: Metal lock | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks
10 Best Cable Testers for Coax That Every Pro Swears By
August 11, 2026Recommended Products
【20 Inch Connectable Contour Gauge for Larger Measuring Jobs】This contour gauge includes 2 connectable 10 inch gauges that can be used separately or combined into a 20 inch profile duplicator, making it easier to copy longer and more complex shapes for flooring, tile, laminate, baseboards and woodworking projects.
【TOOLIFE Connectable Contour Gauge Tool】 With the splicing function, You can connect the 10" and 10" to make a 20" gauge. A larger size makes measurements and accuracy of cutting easy. Just one measure, one cut, you can get a perfect fit!
【DODOWIN Connectable Contour Gauge】What's so special about this contour gauge? You can connect the 10" and 10" to make a 20" gauge. It can be used in combination or alone. 10incn fits to measure longer projects, 20inch after connecting, which can copy larger object contours. Three size measuring tools can help to copy different shapes.

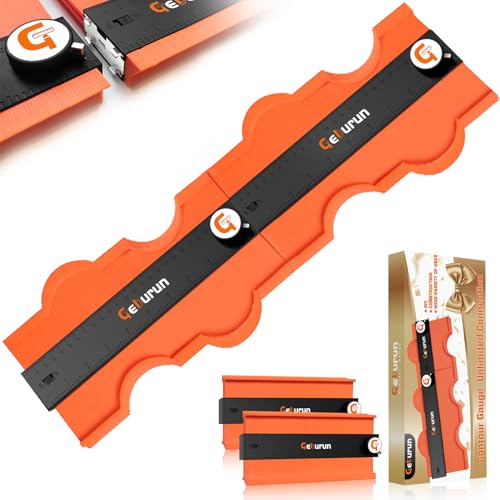

Contour Gauge Profile Tool 20‑Inch Unlimited Connection
This gauge’s two 10-inch ABS sections snap together, and because additional sections can link the same way, you’re not capped at a fixed 20-inch span if you need to trace something longer. Each of the 0.05-inch pins locks in place once you press it against a shape, and dual inch/centimeter scales let you read the result without a separate ruler.
Compared with the WORKPRO gauge below, which also joins two 10-inch sections, this one’s main advantage is that extra sections can be added rather than being capped at 20 inches – useful if you’re duplicating a genuinely long run of trim or pipe. The trade-off is that buying and keeping track of extra sections adds cost and bulk that a single fixed-length gauge doesn’t have.
Verdict: worth it if you regularly need more than 20 inches of reach; overkill if your projects rarely exceed a single section.
- Material:ABS plastic
- Length Options:10 + 10 in (connectable)
- Locking Mechanism:Lock pins in place
- Dual Scale (Inch/CM):Inch & centimeter markings
- Pin Thickness:0.05 in pins
- Power Source:Hand‑powered (no batteries)
- Additional Feature:Unlimited connectivity
- Additional Feature:50% wider gauge
- Additional Feature:Smooth grip
Recommended Products
【Connectable 20 Inch Design for Large Shapes】Includes two 10 inch contour gauges that can be used separately or connected together for longer profiles. Ideal for copying large, wide or irregular shapes in flooring, tile fitting, trim work and woodworking projects.
10 Best Carpenter Squares That Every DIY Pro Swears By
August 11, 2026Connectable Contour Gauge: You can splice the 10-inch and 10-inch contour gauges by pushing the lock to the left to fix it, then you can have two sizes of contour gauges of 10in and 20in, which are suitable for more scenes
【Three Sizes】The 5-inch and 10-inch contour gauges can be spliced together so that you have three sizes of gauges - 5-inch, 10-inch, and 15-inch. 5-inch is perfect for tight spaces; 10-inch suits for most objects; and 15-inch is for larger objects.

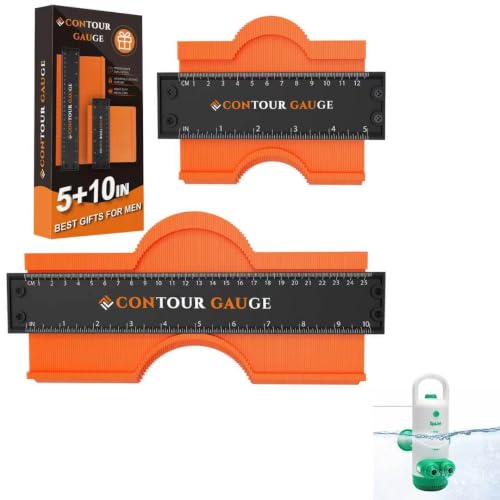

Contour Gauge Tool – Unique Dad & Husband Gift (10+5″)
This kit pairs a 5-inch and a 10-inch gauge in one orange ABS case, so you can grab the shorter one for tight corners and the longer one for wider profiles without buying two separate tools. A metal lock holds the 0.05-inch pins in place once you’ve traced a shape, and an included Allen wrench lets you adjust pin tension for softer or harder surfaces.
Unlike the connectable gauges elsewhere in this guide, the 5-inch and 10-inch sections here aren’t meant to link into one longer span – each is a separate, complete tool, which keeps things simple but means you can’t extend beyond 10 inches in a single trace.
Verdict: a solid two-size option if you want both a compact and a mid-length gauge without dealing with connectable sections, and the gift-ready packaging is a nice bonus if it’s going to someone else.
- Material:ABS plastic + metal lock components
- Length Options:5 in & 10 in gauges
- Locking Mechanism:Metal lock mechanism
- Dual Scale (Inch/CM):Inch & centimeter markings
- Pin Thickness:0.05 in pins
- Power Source:Hand‑powered (no batteries)
- Additional Feature:Metal lock mechanism
- Additional Feature:Gift box packaging
- Additional Feature:Adjustable pin tightness
Recommended Products
Easy shape copying: Designed for quick and easy outline copying, this profile tool utilizes a reliable friction-fit (non-locking) mechanism that allows you to trace irregular shapes smoothly and transfer them to your cutting materials by holding the pins in place during marking.
Contour Gauge Set: This contour gauge kit includes both 5” and 10” profile gauges that can be joined together, offering versatility for various projects
📏【Contour Gauge 】: Wide application for winding pipes, circular frames, ducts, and many objects, Ideal for fitting tiles, laminate, carpet, checking dimensions, molding, etc. Useful tool for operations on car bodies, carpentry and for all kinds of modelling.
Contour Gauge 12″ Lock Profile Tool – Gift for Men
At 12 inches, this gauge is longer than the 10-inch single sections elsewhere in this guide but shorter than the connectable 20-inch options, putting it in the middle for reach. Its 50 pins, each 0.05 in thick, tighten and lock via a hex screwdriver rather than a squeeze-lock or lever, which takes an extra tool but gives a firm hold once set.
The ABS-plastic construction won’t rust the way a bare metal gauge could, and the dual inch/centimeter scale lets you read a traced shape directly off the tool. It’s backed by a 30-day return window if it doesn’t suit your project.
Verdict: a reasonable middle-length choice if you don’t mind using a small screwdriver to lock the pins, rather than a tool-free lever or push lock.
- Material:ABS plastic
- Length Options:12 in gauge
- Locking Mechanism:Locking mechanism
- Dual Scale (Inch/CM):Inch & centimeter markings
- Pin Thickness:0.05 in pins
- Power Source:Hand‑powered (no batteries)
- Additional Feature:50% wider than standard
- Additional Feature:Hex screwdriver adjustment
- Additional Feature:Reusable shape copying
Recommended Products
📏【Good Material & Dual Sides Scale Design】The scribe tool includes 1 × 12'' deepen contour gauge duplicator; The carpenter tools is made of high quality ABS plastic, high strength and rustproof. The master outline gauge, layout profile tool has an inch and a centimeter scales on the dual sides to provide accurate readings.
🎁【Engraved Scale Design】Will not wear out, fall off, or fade, making it impossible to view the size data. Body Made from tough and durable ABS plastic with high strength, non-toxic, sturdy, no rust, durable, conforms to shape and holds pattern, ensures long-term use. This measuring tool makes cutting and measuring become easier.
📏【PRECISE SHAPE DUPLICATION】:Saker Contour Gauge designed for winding pipes, circular frames, ducts and many objects, Ideal for fitting tiles, laminate, carpet, checking dimensions, moulding, etc.Useful tool for operations on car bodies, carpentry and for all kinds of modelling .
WORKPRO Contour Gauge (20″) Profile Duplicator with Lock
Like the unlimited-connection gauge above, the WORKPRO joins two 10-inch sections into a 20-inch span, but here the two halves are meant to be used together as a fixed pair rather than expanded further – you push the lock sideways to join them, with no extra tool needed. The upgraded ABS pins are designed to bend around a curve without scratching the surface you’re tracing.
At 13.4 oz it’s light enough to keep in a toolbox for occasional use, and the dual inch/centimeter scale means you don’t need a separate ruler to read a traced profile.
Verdict: a good fixed 20-inch option if you don’t need to extend beyond that length; choose the unlimited-connection gauge above instead if you might need more reach later.
- Material:ABS plastic
- Length Options:10 + 10 in (connectable)
- Locking Mechanism:Locking mechanism
- Dual Scale (Inch/CM):Inch & centimeter markings
- Pin Thickness:0.05 in pins
- Power Source:Hand‑powered (no batteries)
- Additional Feature:Connectable two‑piece design
- Additional Feature:Non‑scratch surface
- Additional Feature:Upgraded ABS plastic
Recommended Products
【Locking Mechanism & Widen Feature 】FIRSTINFO’s contour gauge shape duplicator is upgraded with “metal locking mechanism”, which is much more durable than plastic lock. Easily lock the contour shape according to your needs. Once the pins are locked, and it helps you to lock the pins in place, so they won't be moved even falling from high place. The width reaches 5.1 inches, while the width of the ordinary one is 3.74 inches.
PRECISE SHAPE DUPLICATION: Easily copy any shape or duplicate a profile exactly for woodworking or tile flooring/linoleum installation where you want to replicate the shape of moldings or match cut outs around door casings and pipes.
Easily conforms around any shape for a precise template, reducing waste created when guessing the dimension of irregular shapes
General Tools Contour Gauge 837 – 6″ Angle Finder
Unlike every other gauge in this guide, which use 0.05-inch ABS-plastic pins, the General Tools 837 uses ultra-thin stainless-steel pins packed 35 to the inch for finer detail on tight profiles like moldings or spindles. The pins move independently and can trace round columns up to three inches deep. The trade-off is that it has no locking mechanism – you hold the gauge steady by hand while transferring the shape, rather than locking the pins in place first like most of the other gauges here.
At just 2.4 oz and 6 inches long, it’s the smallest and lightest gauge in this guide, and its ruler markings are in one-inch increments only, without the metric scale most of the other products in this list include.
Verdict: choose this one for fine detail work on smaller profiles where a lock isn’t essential; if you need to lock a shape in place before tracing, one of the ABS gauges above will serve you better.
- Material:Stainless steel pins, ABS housing
- Length Options:6 in gauge
- Locking Mechanism:No lock (manual)
- Dual Scale (Inch/CM):Ruler markings in inches only
- Pin Thickness:Ultra‑thin stainless steel pins (≈0.02 in)
- Power Source:Hand‑powered (no batteries)
- Additional Feature:Stainless steel pins
- Additional Feature:35 leaves per inch
- Additional Feature:3‑inch depth capacity
DODOWIN 20″ Contour Gauge Lockable Duplicator Tool
The DODOWIN joins two 10-inch sections into a 20-inch gauge with a built-in lock, similar in concept to the WORKPRO above, but it comes with a larger accessory kit – spare blades, a tape measure, a screwdriver, and screws – so a damaged or bent pin section can be swapped out rather than replacing the whole tool.
The dual inch/centimeter scale lets you read a shape directly, and the ABS body stays flexible enough to follow a curve while remaining sturdy in normal use.
Verdict: worth considering over the WORKPRO if you’d rather have spare blades on hand for long-term use, though the core 20-inch tracing experience is similar between the two.
- Material:ABS plastic
- Length Options:10 + 10 in (connectable)
- Locking Mechanism:Built‑in lock
- Dual Scale (Inch/CM):Inch & centimeter markings
- Pin Thickness:Ultra‑thin pins (unspecified)
- Power Source:Hand‑powered (no batteries)
- Additional Feature:15 extra blades included
- Additional Feature:Tape measure accessory
- Additional Feature:Gift‑style packaging
Contour Gauge Tool 10 & 5 Inch Adjustable Woodworking Duplicator
This gauge offers interchangeable 10-inch and 5-inch sections that slide into the same housing, so switching between a wide profile and a tight corner doesn’t mean picking up a second tool. An aluminum lever locks the pins in place once you’ve traced a shape, which is a quicker one-handed motion than the hex-screwdriver lock used on the 12-inch gauge above.
At under 2 lb it’s still easy to carry, and the built-in ruler shows both inches and centimeters. It’s backed by the standard 30-day Amazon return window.
Verdict: a convenient pick if you want one housing that handles both wide and narrow profiles with a fast lever lock, rather than juggling separate tools or a screw-tightened lock.
- Material:ABS plastic
- Length Options:5 in & 10 in gauges
- Locking Mechanism:Metal/aluminum lock
- Dual Scale (Inch/CM):Inch & centimeter markings
- Pin Thickness:0.05 in pins
- Power Source:Hand‑powered (no batteries)
- Additional Feature:Aluminum lock core
- Additional Feature:Built‑in ruler scale
- Additional Feature:Surface‑safe ABS

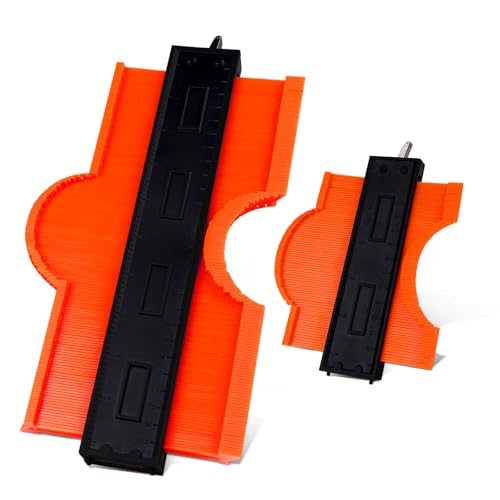

2Pack Adjustable Contour Gauge Tool for Angles & Shapes
This two-pack bundles a 12-inch gauge for wide spans with a 5-inch gauge for tight spots, similar in concept to the 5+10 combo above but sized slightly differently. A metal lock core tightens the teeth without deforming them, and an engraved scale stays readable even after repeated use, unlike a printed scale that can wear off over time.
The pack weighs about 1.5 lb combined and works across flooring, carpentry, laminate, and similar surfaces.
Verdict: a good choice if a 12-inch-plus-5-inch size combination suits your projects better than the 10-plus-5 pairing offered elsewhere in this guide.
- Material:ABS plastic + metal lock core
- Length Options:5 in & ~12 in gauges
- Locking Mechanism:Metal lock core
- Dual Scale (Inch/CM):Inch & centimeter markings
- Pin Thickness:Ultra‑thin pins (unspecified)
- Power Source:Hand‑powered (no batteries)
- Additional Feature:50% deeper measurement
- Additional Feature:400 components total
- Additional Feature:Engraved permanent scale
Saker Contour Gauge Tool for Woodworking DIY
The Saker gauge is a straightforward single 10-inch tool: slide the ABS plastic strip over a stair riser, crown molding, or uneven wall, adjust the tension, then lock the teeth in place so the shape stays exact while you mark your cut. Unlike most of the other gauges in this guide, it doesn’t include an inch or centimeter scale printed on the body, so you’ll need a separate ruler if you want an exact numeric reading rather than just a traced template.
It’s lightweight and rust-proof like the other ABS-bodied gauges here, needs no batteries, and is backed by the standard 30-day return window plus a basic seller warranty.
Verdict: fine if you mainly need a traced template rather than on-tool measurements; pick a gauge with a built-in scale, like several others in this guide, if you want to read dimensions directly off the tool.
- Material:ABS plastic
- Length Options:10 in gauge
- Locking Mechanism:Lock mechanism
- Dual Scale (Inch/CM):No scale (manual)
- Pin Thickness:0.05 in pins
- Power Source:Hand‑powered (no batteries)
- Additional Feature:Lightweight portable design
- Additional Feature:High‑strength rustproof ABS
- Additional Feature:Adjustable tightness knob
VARSK Contour Gauge Tool with Lock (5+10″) Measuring Profile Tool
Like the 5+10 combo above, the VARSK gives you a short and a long gauge in one kit, but it adds a heavy-duty aluminum core for extra stiffness, so the pins hold their position against the surface better than an all-plastic frame might. The 0.05-inch ABS pins have 45-degree teeth designed to grip without scratching, and end screws with a small Allen wrench let you fine-tune pin tension for tighter or looser surfaces.
A metal lock secures the traced shape, and the dual inch/centimeter scale lets you read measurements directly rather than needing a separate ruler.
Verdict: a good pick if you want the flexibility of two gauge lengths plus a stiffer aluminum-reinforced core, though that core adds a bit more heft than an all-plastic design.
- Material:ABS plastic + aluminum core, metal lock
- Length Options:5 in & 10 in gauges
- Locking Mechanism:Metal lock
- Dual Scale (Inch/CM):Inch & centimeter markings
- Pin Thickness:0.05 in pins
- Power Source:Hand‑powered (no batteries)
- Additional Feature:Heavy‑duty aluminum core
- Additional Feature:45‑degree pin teeth
- Additional Feature:Includes Allen wrench
Factors to Consider When Choosing a Contour Gauge
If you need to copy a tricky shape on a wall, a sturdy gauge made of steel or aluminum will keep its form while you work. For anyone who wants to capture a wide profile, pick a length that matches the size of the area you’re measuring. You get finer detail when the pins are thin and evenly spaced, and a solid lock prevents them from slipping while you read the dimensions. What makes this contour gauge stand out is its durable finish that resists wear, so you won’t have to replace it often. You’ll appreciate a clear scale in inches or millimeters, making it easy to read measurements accurately. Perfect for DIY enthusiasts, this tool lets you tackle irregular edges without fuss.
Material Gauge Length
If you need to copy a large, uninterrupted contour, a longer gauge length will save you from constant repositioning and stitching. For anyone who tackles long moldings or baseboards, a 12‑ or 20‑inch gauge lets you trace the whole piece in one go, boosting accuracy and speeding up the workflow. You get smoother results without the hassle of stitching sections together.
What makes this gauge stand out is its versatility for tight corners and cramped spaces. A 5‑inch gauge fits into narrow profiles where longer tools can’t reach, keeping your work precise in those hard‑to‑reach spots. Keep it handy for those tricky angles.
Perfect for DIY enthusiasts who switch between large panels and small‑trim work, this set lets you match the tool to the job. Longer gauges excel on flooring and trim, while the shorter one shines on plumbing and furniture detail. Choose the length that fits your typical projects and enjoy a smoother, faster workflow.
Pin Thickness Precision
If you need to copy a full‑length molding without stopping, a longer gauge will let you glide along the surface in one go. For anyone who cares about fine detail, choosing pins around 0.05 inches (≈1.27 mm) captures tiny curves and tight corners more accurately. Thinner pins, however, are prone to bending or jamming if you press too hard, so you’ll have to handle them gently. You get strong, reliable cuts without worrying about broken pins when you opt for a thicker gauge. The thicker pins survive rough work but will smooth over features smaller than their width, so you’ll lose the smallest details. Perfect for tile‑trimming enthusiasts, match the pin size to the tiniest feature you need to copy while considering how often you’ll use the tool. If your tolerance is tighter than the pin width, the gauge won’t meet your needs. Aim for a pin that balances precision with durability.
Material Durability
If you need a gauge that survives countless projects, look for a body made from high‑strength ABS plastic. It resists cracking and corrosion, so you won’t have to replace it after a few tough jobs. For anyone who works in humid workshops, stainless‑steel pins stay rigid and won’t rust, keeping your measurements accurate.
What makes this contour gauge stand out is the reinforced, thicker body paired with a wider pin array. Those design choices keep the pins aligned and prevent bending when you press them against uneven surfaces. Choose ultra‑thin pins only if they’re crafted from premium steel; otherwise they can deform after repeated use.
You get smooth, non‑abrasive pin surfaces that protect both the tool and the workpiece. This reduces wear on delicate edges and extends the gauge’s life. Perfect for DIY enthusiasts, this gauge’s corrosion‑resistant alloys and tough plastic formulation keep it functional across countless jobs.
Locking Mechanism
If you need to capture a surface’s exact shape without the pins drifting, a solid locking mechanism is essential. It holds the pins steady, so the profile you’ve recorded stays true while you work. Metal locks outlast plastic ones and keep their grip even after many rough jobs.
For anyone who works with abrasive materials, an adjustable lock that tightens with a screw or hex wrench lets you dial in the perfect pin tension. You can set it tight for fine detail or loosen it for smoother movement, depending on the task at hand. Quick‑release designs make it easy to lock and release without messing up the shape.
What makes this gauge stand out is its consistent performance across the entire gauge length. Even pressure prevents skewed pins and distorted contours, giving you reliable results every time you trace or cut. You get a sturdy, long‑lasting lock without the hassle of constant readjustments.
Scale Units
If you often juggle between inches and centimeters on a job site, a dual‑scale contour gauge saves you from constant conversion. You’ll appreciate that both sides have clear, engraved rulers that won’t wear off after dozens of projects. The full‑length scale lets you line up reference points on long profiles without moving the gauge.
For anyone who works fine carpentry or metalwork, millimeter marks and 1/16‑inch divisions give the precision you need. You can quickly read the exact dimensions without guessing. The durable markings stay legible even after heavy use.
What makes this contour gauge stand out is its ability to handle both small‑scale detail work and larger framing tasks. You get inch and centimeter major ticks for big jobs, while the finer divisions handle the delicate cuts. The robust construction keeps the scale intact, so you won’t have to replace it anytime soon.
Connectivity Options
If you need to trace a long, winding edge, a modular contour gauge is the answer. It lets you snap together several 5‑inch sections so the gauge stretches without losing a single pin’s alignment. The connection locks firmly and keeps the pins flush, so you get a seamless surface from end to end. You can join the pieces without any tools, and the tension stays consistent after many assemblies. Perfect for hobbyists who work on large furniture or automotive panels, this system lets you orient the modules side‑by‑side or end‑to‑end for any shape. The result is a clean, accurate profile every time. No hassle, just reliable results.
Frequently Asked Questions
How Do I Clean and Maintain a Contour Gauge for Long‑Term Accuracy?
You can keep a contour gauge accurate by clearing loose debris with a soft brush, then wiping the pins or teeth with a lightly damp cloth and mild soap rather than harsh chemicals that could damage the plastic or metal components. Dry it fully before storing it flat in a dry container to help prevent rust on any metal parts. Checking that the pins move freely and aren’t bent, and avoiding drops, will help the gauge keep tracing shapes accurately over time.
Can the Gauge Be Used on Curved Surfaces Like Pipes or Arches?
Yes, the contour gauges in this guide are designed to trace curved surfaces like pipes or arches – you press the pins or teeth firmly against the curve and keep the body of the gauge as flat as you can to capture the shape accurately. The pins bend or slide to follow the contour while keeping their spacing, so the profile holds true when you transfer it to your material. For a tight curve, a shorter gauge from this list, rather than a full 20-inch span, will usually be easier to keep flat against the surface.
What Material Is Best for the Gauge’s Flexible Strips?
The gauges in this guide use rigid ABS-plastic pins or teeth rather than a flexible strip, which is what lets them hold a traced shape steady once you lock them. A stainless-steel pin design, like the General Tools gauge above, adds extra rust resistance for pins that see frequent use, while ABS pins are lighter and less prone to bending out of shape during storage.
Is There a Maximum Thickness of Material the Gauge Can Duplicate?
The maximum profile depth these gauges can duplicate depends on the model – some are rated for a few inches of pin depth, as noted in the individual product details above, rather than a single figure that applies across all of them. If a shape is deeper than a particular gauge’s pins can reach, the tool won’t capture the full contour, so check the depth or pin length listed for the specific model before relying on it for a deep profile.
Do Temperature Changes Affect the Gauge’s Measurement Precision?
Temperature swings can cause slight expansion or contraction in a gauge’s metal components, such as the stainless-steel pins or aluminum locking cores used in some of the models above, which could introduce minor drift in very fine work. For most home and workshop use this isn’t noticeable, but if you’re working to tight tolerances, letting the tool acclimate to room temperature before tracing a profile, and storing it somewhere with stable conditions, will help keep results consistent.
